Summit Industries Simplicity X-Ray System
Summit Industries Simplicity X-Ray System

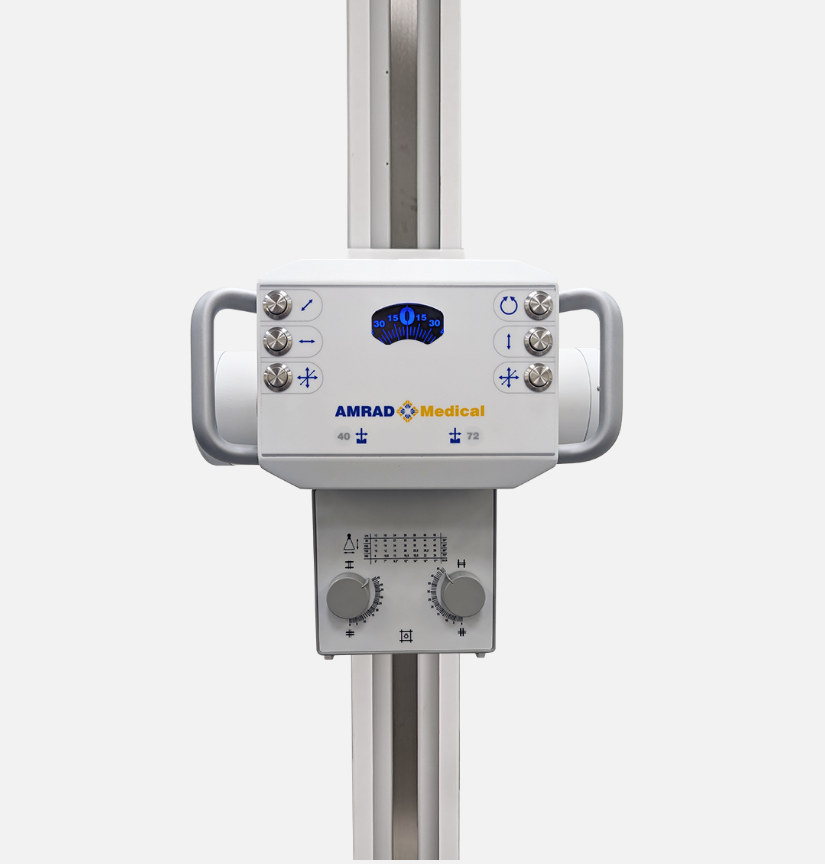

The full-featured SIMPLICITY is a floor wall/floor ceiling tube stand mounted system from AMRAD Medical delivers maximum capability and can be configured to meet the needs of any department. It features an aesthetically pleasing angulation box design with technologist-friendly features, such as the easy-read angulation dial and one-touch release handle making positioning easy and helping to improve patient throughput.
Cross-table exams are easily performed using the +/- 180º rotational and +/- 5 in. transverse positioning capabilities. Additionally, it stands out from its competitors with an industry-leading 5-year parts warranty.
The SIMPLICITY System is available with either an 8 ft. or optional 10 ft. rail to perform weight-bearing studies.
Product Description
Features
- Compact design for facilities with space constraints
- Economical and versatile to meet budgetary requirements
- Customized and flexible configurations
- Industry-leading warranty
Specifications
- Floor-to-wall or floor-to-ceiling mount
- Easy-Read Angulation Dial
- +/- 180° column rotation, 10” transverse travel
- 360° tube angulation with detents at zero and +/-90°
- 14” - 76” vertical travel
- Easily fits into 8’ ceiling height (93” ceiling minimum)
- Non-elevating
- 400 lb. Patient Rated
- Recessed foot pedals for patient safety
- 30” x 84” flat table top
- 31.5” table height
- 28 inch longitudinal travel; 10 inch transverse travel
- Vertical travel of Detector Center: 10” – 72” above finished floor
- Accepts all size detectors
- 150 kVp rated collimator
- Multi-layer, square field
- LASER positioning light
- Tape measure
- Minimum Inherent Filtration: 2mm Al equivalent
- White LED Light Source
- 6 pairs of shutters
